ZP420-31D Rotary Tablet Press Machine Tablet Compression Machine

Performance

ZP420-31D Rotary Tablet Press Machine Tablet Compression Machine is a double-pressing automatically revolving piece-pressing machine which could make grain be pressed to be round piece, be carved characters, special shapes and double color piece prescription. It is mainly used in manufacturing piece prescription for pharmaceutical industry enterprises like chemical industry, foods, electronics.

Main Features

1. Peripheral casing is closed form which is made of all stainless steel , internal mesa adopt stainless steel material, it can keep the surface glossy and prevent cross contamination and meet GMP requirement.
2. It is equipped with organic glass and visual window, visual tablet state, all of the side plate can turn on and clear up and maintenance is easy.
3. All controller and operating parts are rational layout.
4. It is equipped with variable frequency speed control device for electrical control, convenient operation, steady running, it is safe and accurate.
5. It is equipped with overload protection device, when pressure overload, it can stop automatically.
6. It is the mechanical and electrical integration, has touch key and screen display.
7. Being the leader in trying to use semi-automatic lubrication device and the top of rotary table is equipped organic glass dust prevention device.
8. Transmission system is sealed on the main tank below, is a safe separation of independent components, also has no cross pollution, and transmission of infiltration in the oil pool, easy to has heat output and also it is wearable.
9. It is equipped with powder absorbing device , can absorb indoor dust .
10. Wearing parts like orbit, feeder, hopper, drive worm, powder taking equipment and it has general structure with ZP33 type product, it is helpful for standardization, generalization and seriation.

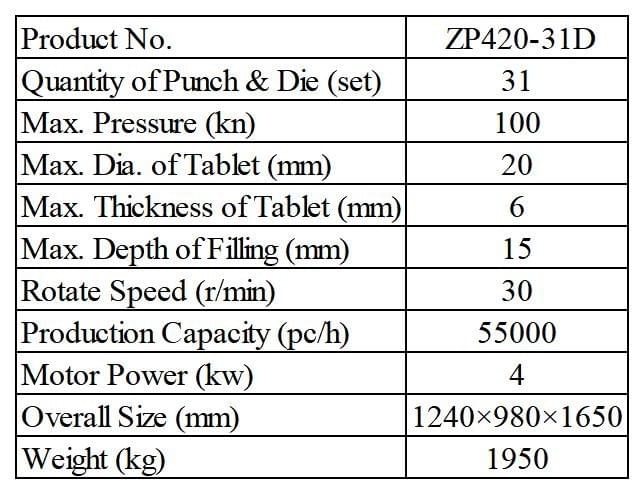

Main Technical Data

Product Details

1. The material of the machine is made of stainless steel with totally closed, the surface of turntable deal with polished and prevent cross pollution which meet the GMP standard.

2. It is equipped with Organic-glass perspective window for tablet producing observation. Each perspective window could be fully opened and easy for cleaning and maintenance.

3. It is adopts the import Frequency Timing with Electromagnetism Clutch.

4. Driving system is equipped with oil box and running under oil, easy for heat dissipation and wear-resistance.

5. It is equipped with Dust Collector as well, which avoid the dust emission, and recycle to save dust.

Final Product
